SCR4 Microcontroller Core

SCR4 is a 32/64-bit RISC-V low-power, high-performance, area-optimized processor core with floating-point arithmetic functionality.

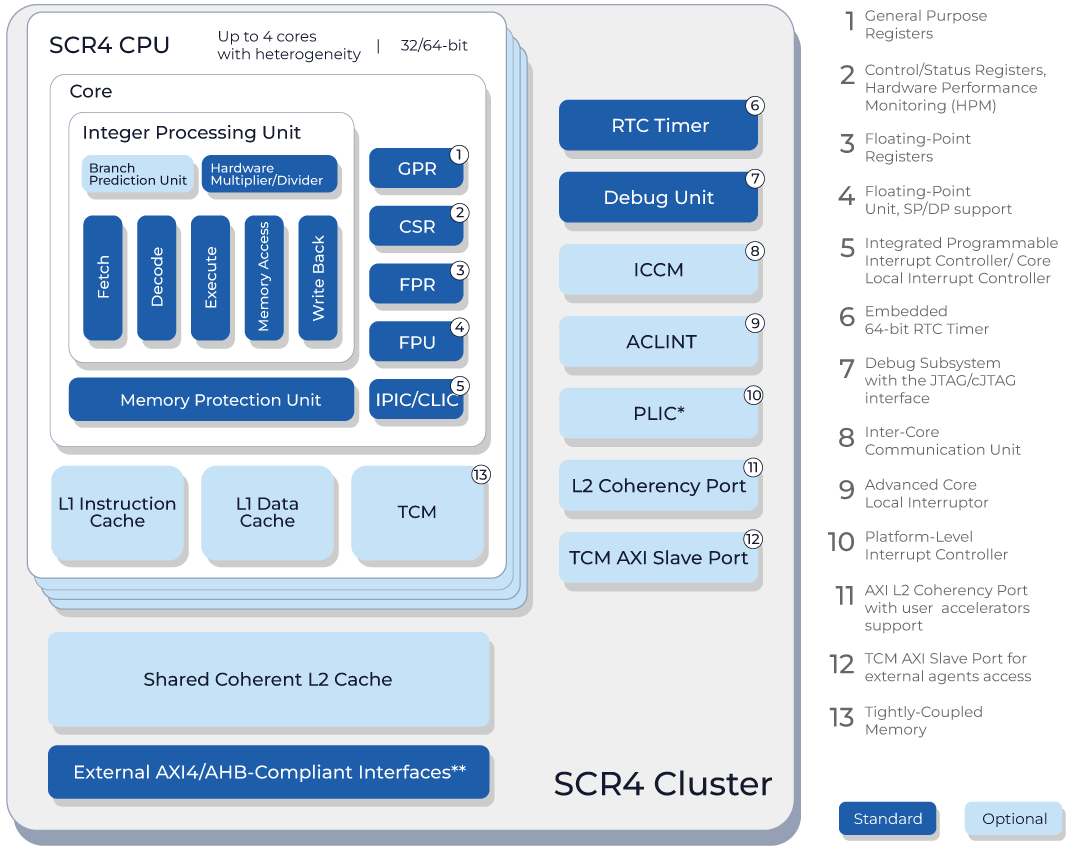

The SCR4 core fully supports RISC-V standard "I" Integer, "M" Integer Multiplication and Division, "A" Atomic, "C" 16-bit Compressed, "F" Single-Precision Floating-Point, "D" Double-Precision Floating-Point, “B” Bit Manipulation, and “K” Scalar Cryptography extensions. SCR4 includes an in-order 5-stage pipeline, a floating-point unit, a branch prediction unit for efficient code execution, separate L1 instruction and data caches, PLIC, ACLINT, IPIC/CLIC units for efficient interrupt processing, and industry-standard AHB, AXI4, JTAG, and cJTAG interfaces increasing flexibility and compatibility.

The SCR4 memory subsystem includes a TCM unit, L1 and L2 caches, an MPU unit and supports seamless execution of various real-time operating systems. The processor core can operate in heterogenous multicore (up to 4 cores in a cluster) environments, offering hardware-level support for memory coherency and simplified external accelerators integration.

Contact sales

Applications

Industrial automation
Internet of things
Mobile

Smart sensors
Automotive
Smart home

SCR4 Key Features

Core
ISA	RV32/RV64IMCF[ADBK] Atomic Instructions [A], Double-Precision Floating-Point Instructions [D], Bit Manipulation [B], Scalar Cryptography Instructions [K] — optional
Pipeline	3-5 stages
Floating-Point Unit (FPU)	Single/Double-precision, IEEE 754-2008 standard
Multicore Support (SMP)	Up to 4 cores with cache coherency
Branch Prediction Unit (BPU)	Static/Dynamic
Memory Subsystem
Tightly-Coupled Memory (TCM)	Up to 256KB, error protection — parity/ECC
L1 Cache	Up to 32KB + 32KB, error protection — parity/ECC
L2 Cache	From 128KB to 512KB, error protection — ECC
Memory Protection Unit (MPU)	Configurable, up to 32-region MPU
Interrupt Subsystem
IPIC	Up to 32 interrupt lines
CLIC	Up to 4096 interrupt lines, up to 256 priority levels
PLIC	Up to 1023 interrupt lines, up to 256 priority levels
ACLINT	Up to 4096 interrupt lines
Debug Subsystem
Interface	JTAG/cJTAG-compliant interface
Breakpoints	Up to 8 hardware breakpoints, unlimited software breakpoints support
Interfaces
AXI	Master AXI4 AMBA standard interface
AHB	Master AHB AMBA standard interface
Timers and Counters
Performance Monitoring	Up to 32 performance counters
Embedded 64-bit RTC Timer	Machine-mode timer interrupt support

Development Tools

Syntacore Development Toolkit (SCR4 Optimized)

The SC-DT package is a ready-to-use software development kit containing pre-built and pre-configured tools that simplify software development for the SCR4 core. With SC-DT, you can take advantage of the pre-built tools and configurations to reduce the time and effort required to get up and running with SCR4. SC-DT supports Windows and Linux operating systems and includes:

Eclipse IDE and Visual Studio Code plugin
Compilers (GCC, clang/LLVM with microarchitecture optimizations)
Debuggers (GDB, OCD)
Simulator (QEMU)
FreeRTOS
HAL and BSP
Application examples
Benchmarks
Documentation

Syntacore also supports and maintains the Zephyr operating system that is not part of the SC-DT package and is downloadable separately.

More details

SCR4 Product Package

SCR4 is available out-of-the-box, configurable, written in SystemVerilog and comes with a full set of pre-built, tested, and optimized development tools, pre-configured FPGA-based SDK and complete documentation. The software package includes ready-to-use toolchains, IDEs, operating systems, bootloaders, debuggers, simulators, and sample projects that reduce the time and effort required to get up and running with SCR4.

The SCR4 product package includes:

Component	Contents
RISC-V-compatible Core	System Verilog RTL source code (encrypted for evaluation stage, all major EDA tool vendors are supported) Netlist for the required FPGA devices (Xilinx/Altera)
Syntacore Development Toolkit (downloaded separately)	Toolchains OS and bootloaders IDEs Debuggers Simulator Software example projects, HAL and BSP
FPGA-based SDK	Sample FPGA projects Pre-build FPGA images
Integration Verification Environment (IVE)	Verification test suite for the pre-silicon (RTL simulation-based) Post-silicon validation and testing (pre-si and post-si tests)
Synthesis Reference Scripts	Reference scripts SDC constraint files
Comprehensive Documentation	User Manual (quick start guide) External Architecture Specification (EAS) Instruction Set Manual (ISM) Integration Verification Environment (IVE) manual SDK User Guide Tools Guide (IDE, CLI)
