SCR6 Microcontroller Core

SCR6 is a high-performance, silicon-proven, 64-bit RISC-V processor core. It is optimized for embedded RTOS-based applications, that require considerable computational power.

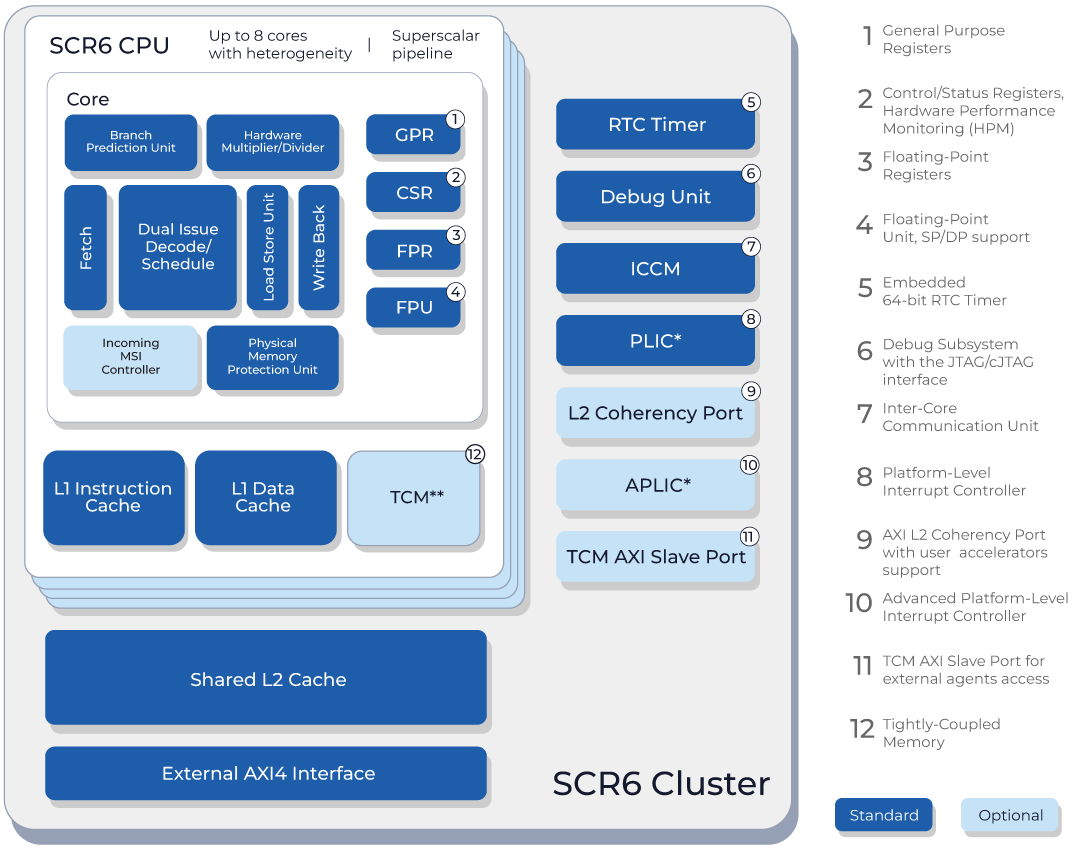

The SCR6 core supports RISC-V standard "I" Integer, "M" Integer Multiplication and Division, "A" Atomic, "C" 16-bit compressed, "F" Single-Precision Floating-Point, "D" Double-Precision Floating-Point, "B" Bit Manipulation, and "K" Scalar Cryptography extensions. SCR6 includes an out-of-order superscalar 12-stage pipeline, a high-precision floating-point unit, a branch prediction unit, PLIC or APLIC units for efficient interrupt processing, and industry-standard AXI4 and JTAG/cJTAG interfaces providing flexibility and compatibility.

The SCR6 memory subsystem includes L1 and L2 caches and a PMP unit that provide the execution of RTOS-based operating systems. The processor core can operate in heterogenous multicore (up to 8 cores in a cluster) environments, offering hardware-level support for memory coherency and simplified external accelerators' integration.

* Either PLIC or IPIC is supported

SCR6 Application Core

Email sales@syntacore.com for the datasheet

Applications

  • Industrial automation
  • Motor control
  • Image and voice processing
  • Sensor fusion
  • Automotive
  • Smart home

SCR6 Key Features

Core
ISARV64GC[B][K]
Bit Manipulation [B], Scalar Cryptography Instructions [K] — optional
PipelineOut-of-order 12-stage superscalar
Floating-Point Unit (FPU)Single/Double-precision, IEEE 754-2008 standard
Multicore Support (SMP)Up to 8 cores with cache coherency. Supports integration into L3-based clusters with CHI interface.
Branch Prediction Unit (BPU)Static/Dynamic
Memory Subsystem
L1 CacheUp to 64KB + 64KB, error protection — parity/ECC
L2 CacheFrom 128KB to 2MB, error protection — ECC
Physical Memory Protection Unit (PMP)Configurable, up to 64-region PMP
Interrupt Subsystem
Platform-level interrupt controller (PLIC)Up to 1023 interrupt lines, up to 256 priority levels
Advanced Interrupt Architecture (AIA)Advanced platform level interrupt controller (APLIC) + Incoming Message Signaled Interrupt Controller (IMSIC) up to 1023 interrupt lines, up to 2047 distinct interrupt identities at each hart
Debug Subsystem
InterfaceJTAG/cJTAG-compliant interface
BreakpointsUp to 8 hardware breakpoints, unlimited software breakpoints support
Interfaces
AXIMaster AXI4 AMBA standard interface
External PortsL2 cache coherency port
Timers and Counters
Performance MonitoringUp to 32 performance counters
Embedded 64-bit RTC TimerMachine-mode timer interrupt support

Development Tools

Syntacore Development Toolkit (SCR6 Optimized)

The SC-DT package is a ready-to-use software development kit containing pre-built and pre-configured tools that simplify software development for the SCR6 core. With SC-DT, you can take advantage of the pre-built tools and configurations, reducing the time and effort required to get up and running with SCR6. SC-DT supports Windows and Linux operating systems and includes:

  • Eclipse IDE and Visual Studio Code plugin
  • Compilers (GCC, clang/LLVM with microarchitecture optimizations)
  • Debuggers (GDB, OCD)
  • Simulator (QEMU)
  • FreeRTOS
  • HAL and BSP
  • Application examples
  • Benchmarks
  • Documentation

Syntacore also supports and maintains the Zephyr operating system that is not part of the SC-DT package and is downloadable separately.

SCR6 Product Package

SCR6 is available out-of-the-box, configurable, written in SystemVerilog and comes with a full set of pre-built, tested, and optimized development tools, pre-configured FPGA-based SDK and complete documentation. The software package includes ready-to-use toolchains, IDEs, operating systems, bootloaders, debuggers, simulators, and sample projects that reduce the time and effort required to get up and running with SCR6.

The SCR6 product package includes:

ComponentContents
RISC-V-compatible Core
  • System Verilog RTL source code (encrypted for evaluation stage, all major EDA tool vendors are supported)
  • Netlist for the required FPGA devices (Xilinx/Altera)
Syntacore Development Toolkit
(downloaded separately)
  • Toolchains
  • OS and bootloaders
  • IDEs
  • Debuggers
  • Simulator
  • Software example projects, HAL and BSP
FPGA-based SDK
  • Sample FPGA projects
  • Pre-build FPGA images
Integration Verification Environment (IVE)
  • Verification test suite for the pre-silicon (RTL simulation-based)
  • Post-silicon validation and testing (pre-si and post-si tests)
Synthesis Reference Scripts
  • Reference scripts
  • SDC constraint files
Comprehensive Documentation
  • User Manual (quick start guide)
  • External Architecture Specification (EAS)
  • Instruction Set Manual (ISM)
  • Integration Verification Environment (IVE) manual
  • SDK User Guide
  • Tools Guide (IDE, CLI)
